Opis

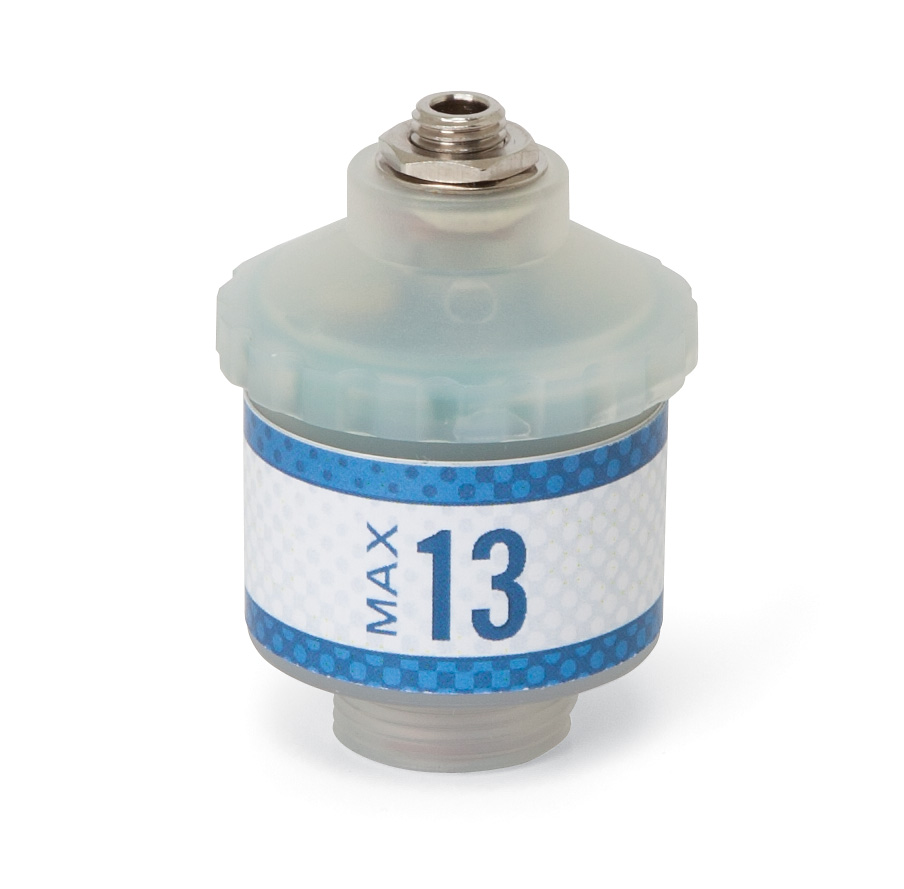

Czujnik tlenu Max 13

ZAMIENNIK DLA:

• Analytical Industries [PSR-11-917-J]
• City Technology [MOX-2]
• Covidien [4-020933-00, 7820 Monitor, 7200 Vent]
• Datascope [Anestar S]
• EnviteC [OOM-102-1]
• HillRom [6735142]
• Invivo [9445 Sensor]
• MSA [406931, MiniOX 3000, MiniOX II, MiniOX III]
• Mercury Medical [10-103-05]
• Pacifitech [PT-11A]
• Philips (Respironics) [Criterion Vent, Espirit Vent Lifecare (#PLV-102), 37-079 Sensor]
• Precision Medical [PM5900, 504877]
• Teledyne [R17MED #C-43690, R17MED #C-43690]
• Teleflex (Hudson) [5567, V-11]
• VTI [100580]
• Viasys [66030 Sensor, 6400 Vent, 8400 Vent, VIP Vent]

SPECYFIKACJA

• Range of Measurement: 0 to 100%
• Output Range: 13.0 to 16.5 mV
• Zero Offset: ≤ 0.25 mV
• Response Time: ≤ 12 s
• Linearity: ≤ 3%
• Expected Lifetime: > 1,000,000 %O2 hours
• Temperature Compensation: NTC
• Operational Temperature Range: 10° to 40°C
• Storage Temperature Range: -20° to 50°C
• Humidity Range: 0% to 99% RH, non-condensing
• Ambient Pressure Range: 700-1250 mbar
• Interference: PER EN ISO 80601-2-55
• Electrical Interface: 3.5mm mono jack
